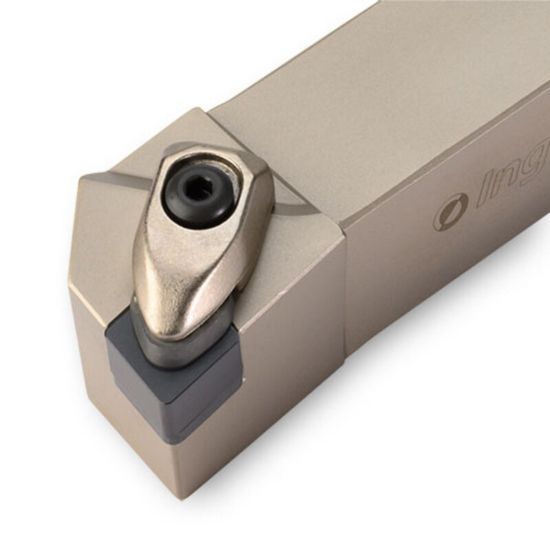

Picture of INGERSOLL TCLNR24-4D Turning Stick Tool 80.0° Square 1.500 Steel

INGERSOLL TCLNR24-4D Turning Stick Tool 80.0° Square 1.500 Steel

ANSI: TCLNR24-4D

ISO: TCLNR24-4D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3603850
Delivery date: 3-5 days
$188.53

Features And Benefits

T-type holder for external turning Accepts negative 80° rhombic inserts

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Application Ext.Turning
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 12 "43"
Lead Angle 95°
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 6.0000 152.40MM
Machine Side Connection Size 1.5000 38.10MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Cutting & Machining Properties
Hand R/L Right
Insert Style CN
Inter/Extern External
Insert Shape/Cutter Pocket Shape 80.0°
