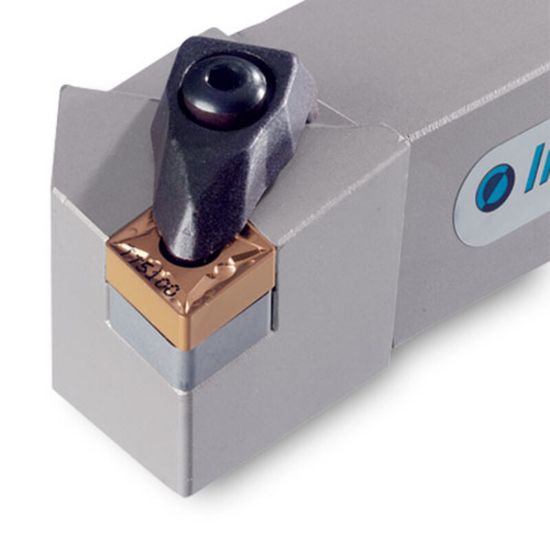

Picture of INGERSOLL TCLNR20-5D Turning Stick Tool 80.0° Square 1.250 Steel

INGERSOLL TCLNR20-5D Turning Stick Tool 80.0° Square 1.250 Steel

ANSI: TCLNR20-5D

ISO: TCLNR20-5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3603226
Delivery date: 3-5 days
$136.27

Features And Benefits

T-type holder for external turning Accepts negative 80° rhombic inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 16 "54"
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Lead Angle 95°
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Insert Style CN
Inter/Extern External
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
