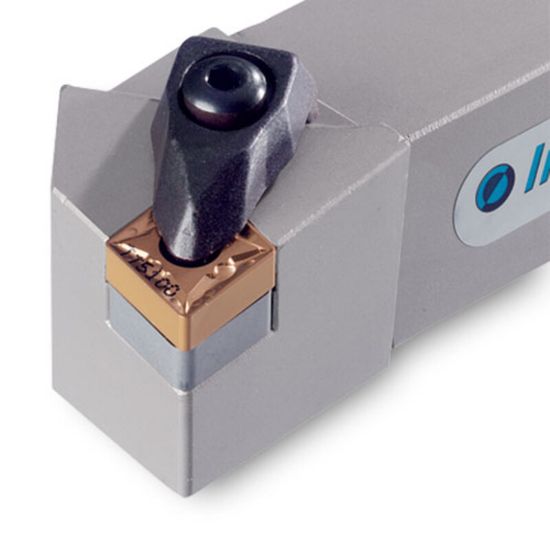

Picture of INGERSOLL TCLNL20-5D Turning Stick Tool 80.0° Square 1.250 Steel

INGERSOLL TCLNL20-5D Turning Stick Tool 80.0° Square 1.250 Steel

ANSI: TCLNL20-5D

ISO: TCLNL20-5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3603315
Delivery date: 3-5 days
$136.27

Features And Benefits

T-type holder for external turning Accepts negative 80° rhombic inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 16 "54"
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Size 1.2500 31.75MM
Overall Len 6.0000 152.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 95°
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CN
Inter/Extern External
Hand R/L Left
