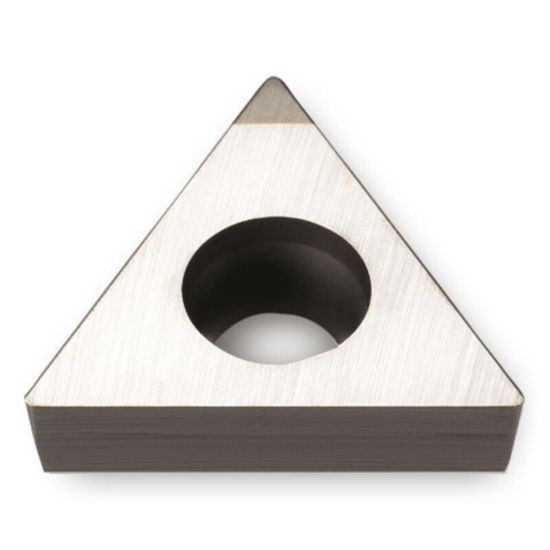

Picture of INGERSOLL TCGW32.51LSTB7015 Turning Insert Triangle 0.016 Corner Radius

INGERSOLL TCGW32.51LSTB7015 Turning Insert Triangle 0.016 Corner Radius

ANSI: TCGW32.51LSTB7015

ISO: TCGW16T304LS TB7015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6210540
Delivery date: 3-5 days
$51.52

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Grade and Coating Description

General machining of gray cast iron. Turning and milling of gray cast iron. Severe interrupt turning and milling of hardened steel.

Products specifications
Attribute name Attribute value
General Product Information
Application Turning Insert
Package Size 10
Made In USA No
Shipping State Illinois
Insert/Tool Insert
Grade TB7015
Insert Application Finishing
Insert Type Positive
Dimensional Specifications
Insert Size Ic 16 "32"
Corner Radius 0.0160 0.41MM
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat CBN
Insert Style TC
Insert Shape/Cutter Pocket Shape Triangle
