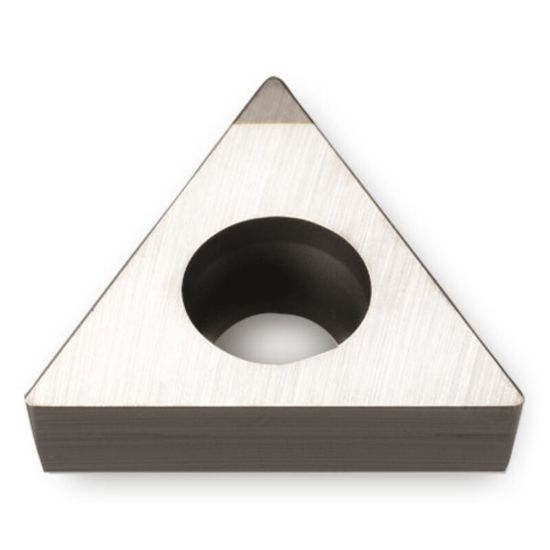

Picture of INGERSOLL TCGW21.51LS KB90 Turning Insert Triangle 0.016 Corner Radius

INGERSOLL TCGW21.51LS KB90 Turning Insert Triangle 0.016 Corner Radius

ANSI: TCGW21.51LS KB90

ISO: TCGW110204LS KB90

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5401012
Delivery date: 3-5 days
$51.52

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Grade and Coating Description

Solid CBN grade with excellent impact resistance for high speed machining of cast iron and rough to medium machining of hardened steels

Products specifications
Attribute name Attribute value
General Product Information
Application Turning Insert
Made In USA No
Insert/Tool Insert
Shipping State Illinois
Grade KB90
Insert Application Finishing
Insert Type Positive
Package Size 10
Dimensional Specifications
Corner Radius 0.0160 0.41MM
Insert Size Ic 11 "21"
Cut Rating Ductile Iron, Gray Iron
Cutting & Machining Properties
Cutting Edge Mat CBN
Insert Style TC
Insert Shape/Cutter Pocket Shape Triangle
