  • INGERSOLL SP6N-06R02 Milling Cutter 6.000 Shell Arbor 1.5000 9 Flute Coolant 0.072 Max DOC 2.500 OAL

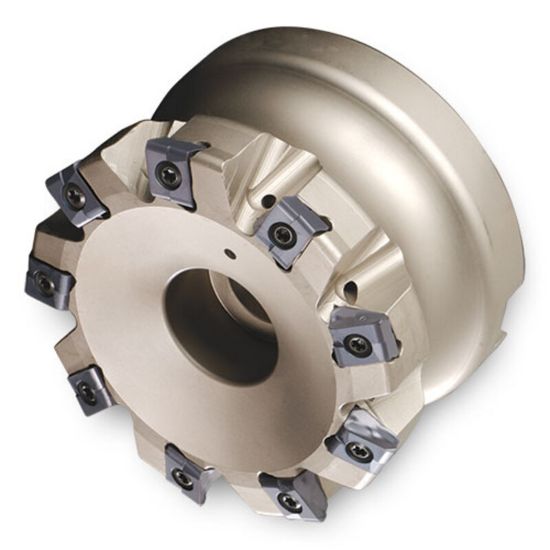

Picture of INGERSOLL SP6N-06R02 Milling Cutter 6.000 Shell Arbor 1.5000 9 Flute Coolant 0.072 Max DOC 2.500 OAL

INGERSOLL SP6N-06R02 Milling Cutter 6.000 Shell Arbor 1.5000 9 Flute Coolant 0.072 Max DOC 2.500 OAL

ANSI: SP6N-06R02

ISO: SP6N-06R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3026111
Delivery date: 3-5 days
$1,353.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Application Face Milling, Copy Milling, Feed Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Type Neutral
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Max 6.0000 152.40MM
Machine Side Connection Size 1.5000 38.10MM
Overall Len 2.5000 63.50MM
Flutes/Inserts 9
Cut Dia Min 4.9220 125.02MM
Insert Size Ic 43
Cutter Dia 6.0000 152.40MM
Depth Of Cut Max 0.0720
Tool Material Steel
Cutting & Machining Properties
Insert Style DP
Insert Shape/Cutter Pocket Shape Rectagonal
Coolant Thru Yes
Max Ramp Angle 0.30°
