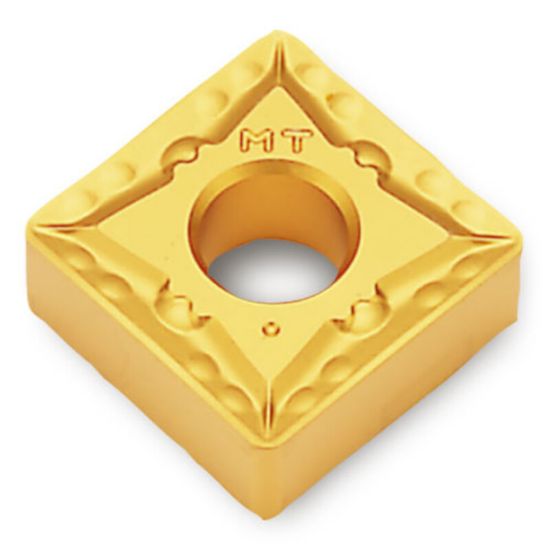

INGERSOLL SNMG432MT TT7015 Turning Insert Square TiCN + Al2O3 0.031 Corner Radius

ANSI: SNMG432MT TT7015

ISO: SNMG120408MT TT7015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5523622
Delivery date: 3-5 days
$8.16

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Wear resistant CVD coated grade for general machining of gray and ductile cast irons in continuous and interrupted conditions

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Coating TiCN + Al2O3
Application Turning Insert
Package Size 10
Insert/Tool Insert
Insert Type Negative
Made In USA No
Shipping State Illinois
Grade TT7015
Dimensional Specifications
Corner Radius 0.0310 0.79MM
Cut Rating Ductile Iron, Gray Iron
Insert Size Ic 12 "43"
Cutting & Machining Properties
Cutting Edge Mat Carbide
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
