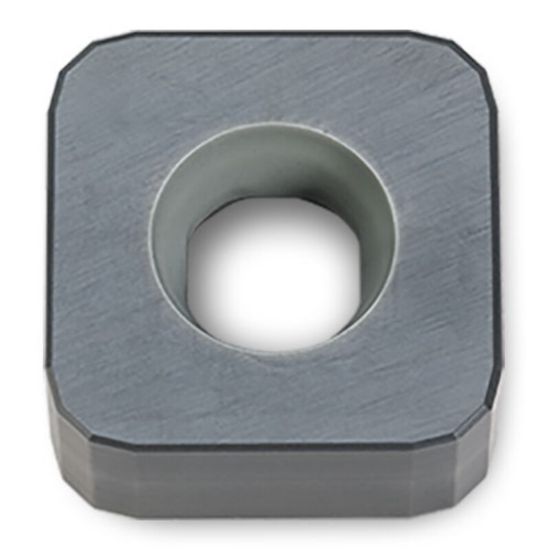

Picture of INGERSOLL SNGQ1205ENN IN71N Milling Insert Square 0.040 ISOplus

INGERSOLL SNGQ1205ENN IN71N Milling Insert Square 0.040 ISOplus

ANSI: SNGQ1205ENN IN71N

ISO: SNGQ1205ENN IN71N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5702957
Delivery date: 3-5 days
$26.95

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

HIGH SPEED MACHINING OF GRAY IRON

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Grade IN71N
Package Size 10
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Insert
Application Milling Insert
Dimensional Specifications
Depth Of Cut Max 0.5000
Insert Size Ic 12
Corner Radius 0.0400 1.02MM
Cut Rating Ductile Iron, Gray Iron
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SN
Cutting Edge Mat Silicon Nitride
