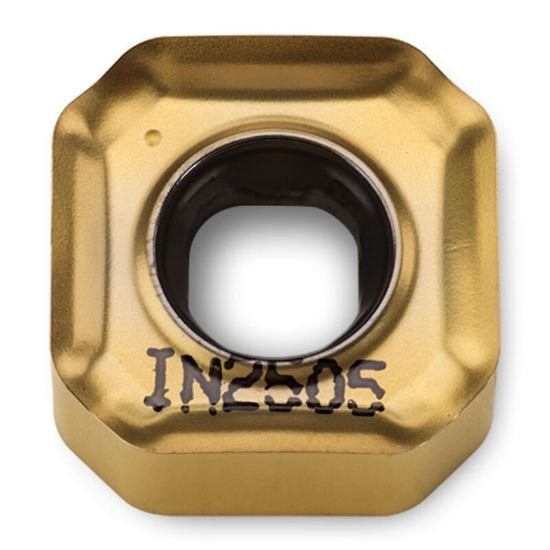

Picture of Ingersoll SNEV1204ANN-PH IN2505 Milling Insert Square 0.100 TiAIn + TiN Quad Plus

Ingersoll SNEV1204ANN-PH IN2505 Milling Insert Square 0.100 TiAIn + TiN Quad Plus

Part Number: ING5812734 ISO: SNEV1204ANN-PH IN2505 ANSI:SNEV1204ANN-PH IN2505
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1007777
Vendor: Sussex Tool and Supply
$19.25
This product has a minimum quantity of 10

Description

INGERSOLL 5812734 Square Insert Negative TiAIN + TiN Hard Grade For Steel,Stainless,Iron and High Temp
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type Roughing, Semi Finishing
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
Insert Type Negative
Dimensions & Sizing
Insert Size Ic 12
Geometry & Angles
Corner Radius 0.1000 2.54MM
Performance & Capacity
Cut Rating Aluminum, Brass, Copper, Ductile Iron, Gray Iron, High Temp, Stainless Steel, <48HRC Steel
Depth Of Cut Max 0.6970
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAIN + TiN
Grade IN2505
Compatibility & Fit
Insert Fits Square
