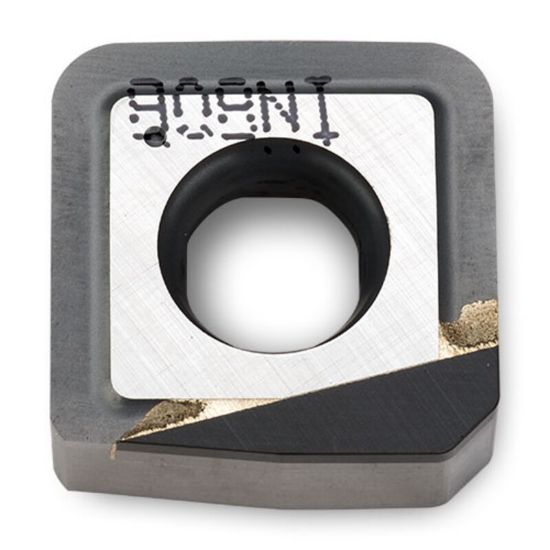

Picture of INGERSOLL SNED1204ANR-DT IN80B Milling Insert Square 0.060 Quad Plus

INGERSOLL SNED1204ANR-DT IN80B Milling Insert Square 0.060 Quad Plus

ANSI: SNED1204ANR-DT IN80B

ISO: SNED1204ANR-DT IN80B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5812332
Delivery date: 3-5 days
$100.80

Cutting Edge Definition

PCD stands for “Poly Crystalline Diamond”, the hardest available cutting material. PCD is a synthetic diamond produced by sintering together selected diamond particles with a metal matrix at high temperature and high pressure. The result is 90-95% diamond content material that reaches a hardness close to 6000 HV. In addition, the small amount of the binder gives the material additional toughness that makes it an efficient cutting material.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Application Milling Insert
Grade IN80B
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Package Size 10
Dimensional Specifications
Cut Rating Ductile Iron, Gray Iron
Depth Of Cut Max 0.3860
Insert Size Ic 12
Corner Radius 0.0600 1.52MM
Cutting & Machining Properties
Insert Style SN
Cutting Edge Mat PCD
Insert Shape/Cutter Pocket Shape Square
