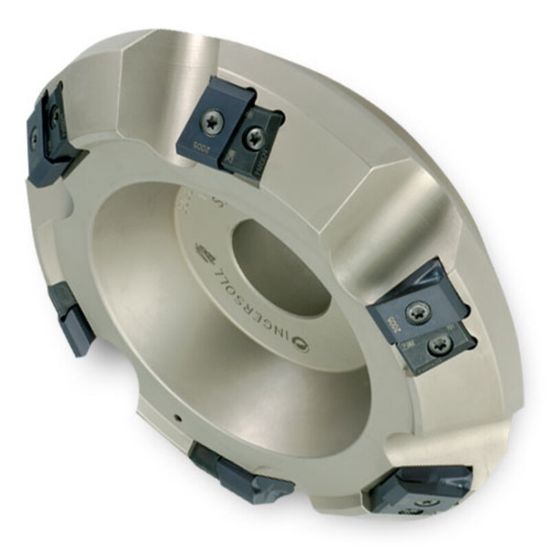

Picture of INGERSOLL SN2R-12R01 Milling Cutter 45.0° 12.00 Shell Arbor 2.5000 12 Flute 0.53 Max DOC 2.375 OAL

INGERSOLL SN2R-12R01 Milling Cutter 45.0° 12.00 Shell Arbor 2.5000 12 Flute 0.53 Max DOC 2.375 OAL

ANSI: SN2R-12R01

ISO: SN2R-12R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3024401
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

FACE MILL FOR HEAVY APPLICATIONS, GREAT FOR ROUGHING. HIGH HORSE POWER MACHINES, ON EDGE TECHNOLOGY GIVES IT GREAT STRENGTH.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Finishing, Roughing
Application Face Milling
Package Size 1
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Size 2.5000 63.50MM
Flutes/Inserts 12
Cut Dia Max 13.0700 331.98MM
Insert Size Ic 43
Cutter Dia 12.0000 304.80MM
Depth Of Cut Max 0.5300
Overall Len 2.3750 60.33MM
Cut Dia Min 12.0000 304.80MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Rectagonal
Insert Style DP
