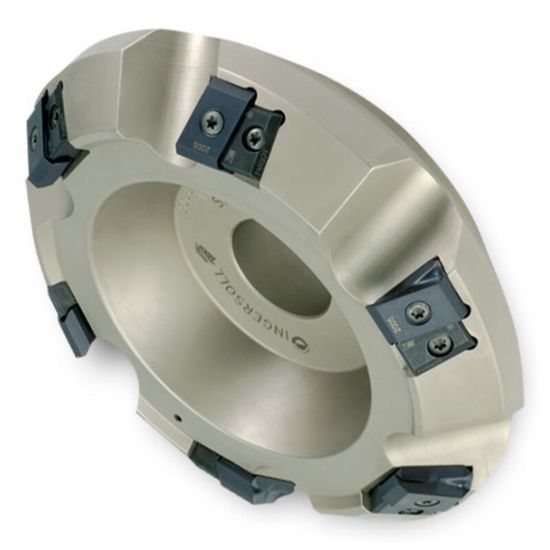

Picture of INGERSOLL SN2R-10R01 Milling Cutter 45.0° 10.00 Shell Arbor 2.5000 10 Flute 0.53 Max DOC 2.375 OAL

INGERSOLL SN2R-10R01 Milling Cutter 45.0° 10.00 Shell Arbor 2.5000 10 Flute 0.53 Max DOC 2.375 OAL

ANSI: SN2R-10R01

ISO: SN2R-10R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3024400
Delivery date: 3-5 days
$2,585.33

Details

FACE MILL FOR HEAVY APPLICATIONS, GREAT FOR ROUGHING. HIGH HORSE POWER MACHINES, ON EDGE TECHNOLOGY GIVES IT GREAT STRENGTH.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing, Roughing
Insert/Tool Tool
Shipping State Illinois
Application Face Milling
Package Size 1
Insert Type Negative
Made In USA No
Dimensional Specifications
Cutter Dia 10.0000 254.00MM
Cut Dia Max 11.0700 281.18MM
Overall Len 2.3750 60.33MM
Machine Side Connection Size 2.5000 63.50MM
Cut Dia Min 10.0000 254.00MM
Tool Material Steel
Insert Size Ic 43
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.5300
Flutes/Inserts 10
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Rectagonal
Insert Style DP
Coolant Thru No
