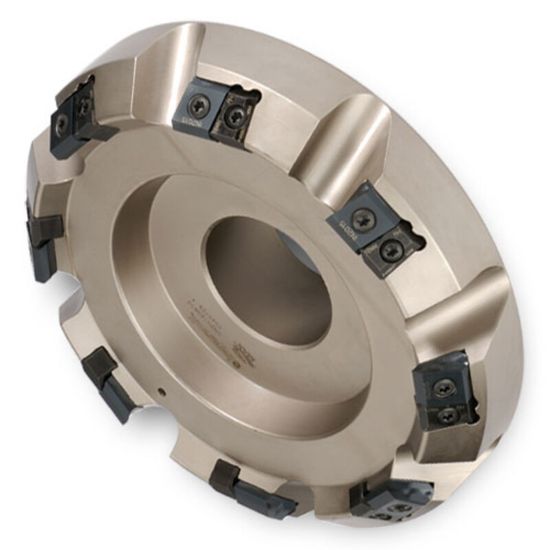

Picture of INGERSOLL SN2N-06A02 Milling Cutter 45.0° 6.000 Shell Arbor 1.5000 8 Flute 0.35 Max DOC 2.375 OAL

INGERSOLL SN2N-06A02 Milling Cutter 45.0° 6.000 Shell Arbor 1.5000 8 Flute 0.35 Max DOC 2.375 OAL

ANSI: SN2N-06A02

ISO: SN2N-06A02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3029248
Delivery date: 3-5 days
$1,726.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling
Package Size 1
Insert Type Negative
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.3500
Insert Size Ic 43
Cutter Dia 6.0000 152.40MM
Machine Side Connection Size 1.5000 38.10MM
Cut Dia Min 6.0000 152.40MM
Overall Len 2.3750 60.33MM
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Max 6.7000 170.18MM
Tool Material Steel
Flutes/Inserts 8
Cutting & Machining Properties
Coolant Thru No
Insert Style DN
Insert Shape/Cutter Pocket Shape Rectagonal
