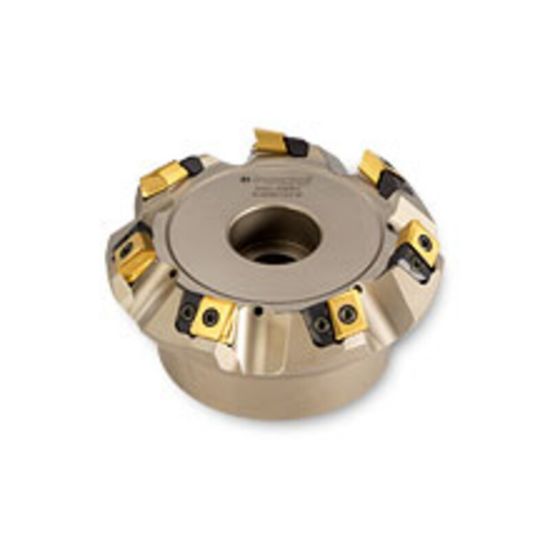

Picture of INGERSOLL SN2J-08R01 Milling Cutter 45.0° 8.000 Shell Arbor 2.5000 12 Flute 0.32 Max DOC 2.375 OAL

INGERSOLL SN2J-08R01 Milling Cutter 45.0° 8.000 Shell Arbor 2.5000 12 Flute 0.32 Max DOC 2.375 OAL

ANSI: SN2J-08R01

ISO: SN2J-08R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3009403
Delivery date: 3-5 days
$2,174.67

Details

FACE MILL WITH ON EDGE POCKET SUPPORT GIVING IT GREAT STRENGH FOR ROUGHING APPLICATIONS.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Insert Application Finishing, Roughing, Semi Finishing
Application Face Milling
Insert Type Negative
Made In USA No
Package Size 1
Dimensional Specifications
Overall Len 2.3750 60.33MM
Tool Material Steel
Machine Side Connection Size 2.5000 63.50MM
Cut Dia Min 8.0000 203.20MM
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.3200
Flutes/Inserts 12
Insert Size Ic 32
Cut Dia Max 8.8300 224.28MM
Cutter Dia 8.0000 203.20MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Rectagonal
Insert Style DG
Coolant Thru No
