  • INGERSOLL SN2J-04R01 Milling Cutter 45.0° 4.000 Shell Arbor 1.5000 7 Flute Coolant 0.32 Max DOC 2.375 OAL

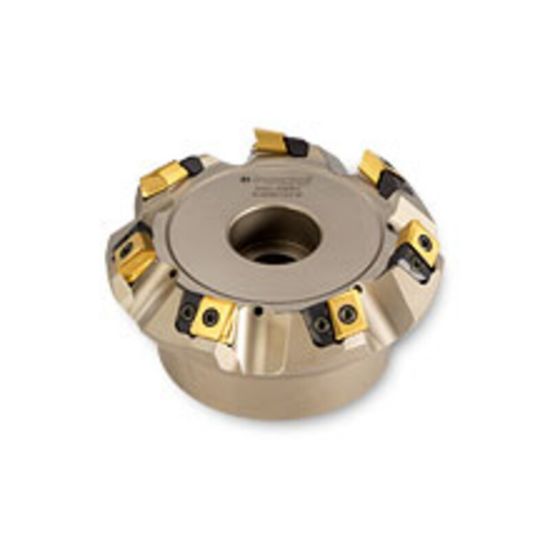

Picture of INGERSOLL SN2J-04R01 Milling Cutter 45.0° 4.000 Shell Arbor 1.5000 7 Flute Coolant 0.32 Max DOC 2.375 OAL

INGERSOLL SN2J-04R01 Milling Cutter 45.0° 4.000 Shell Arbor 1.5000 7 Flute Coolant 0.32 Max DOC 2.375 OAL

ANSI: SN2J-04R01

ISO: SN2J-04R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3029365
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Face Milling
Package Size 1
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 4.0000 101.60MM
Tool Material Steel
Depth Of Cut Max 0.3200
Cutter Dia 4.0000 101.60MM
Cut Dia Max 4.6800 118.87MM
Overall Len 2.3750 60.33MM
Insert Size Ic 32
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 7
Cutting & Machining Properties
Insert Style DG
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Rectagonal
