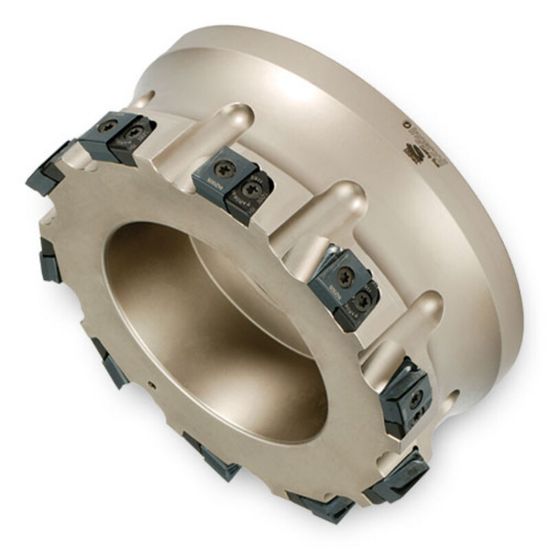

Picture of INGERSOLL SJ6N-06R01 Milling Cutter 90.0° 6.000 Shell Arbor 1.5000 10 Flute 0.68 Max DOC 2.375 OAL

INGERSOLL SJ6N-06R01 Milling Cutter 90.0° 6.000 Shell Arbor 1.5000 10 Flute 0.68 Max DOC 2.375 OAL

ANSI: SJ6N-06R01

ISO: SJ6N-06R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3023068
Delivery date: 3-5 days
$1,605.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Insert Application Finishing, Semi Finishing
Package Size 1
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 10
Depth Of Cut Max 0.6800
Cut Dia Min 6.0000 152.40MM
Overall Len 2.3750 60.33MM
Insert Size Ic 43
Cut Dia Max 6.0000 152.40MM
Machine Side Connection Size 1.5000 38.10MM
Cutter Dia 6.0000 152.40MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Flat Blade
Coolant Thru No
Insert Style DP
