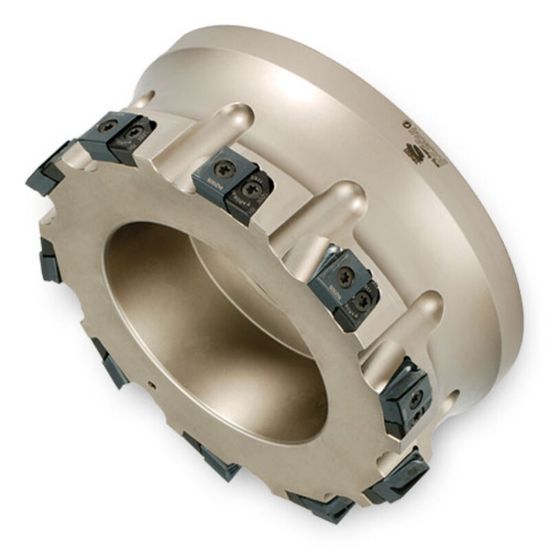

Picture of INGERSOLL SJ6N-03R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 5 Flute 0.68 Max DOC 2.375 OAL

INGERSOLL SJ6N-03R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 5 Flute 0.68 Max DOC 2.375 OAL

ANSI: SJ6N-03R01

ISO: SJ6N-03R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3019625
Delivery date: 3-5 days
$840.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Finishing
Application Side Milling, Face Milling
Insert Type Negative
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.6800
Machine Side Connection Size 1.0000 25.40MM
Tool Material Steel
Flutes/Inserts 5
Cutter Dia 3.0000 76.20MM
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 43
Cut Dia Max 3.0000 76.20MM
Overall Len 2.3750 60.33MM
Cutting & Machining Properties
Insert Style DP
Insert Shape/Cutter Pocket Shape Flat Blade
Coolant Thru No
