  • INGERSOLL SJ6F-02R02 Milling Cutter 90.0° 2.500 Shell Arbor 0.7500 6 Flute Coolant 0.42 Max DOC 1.570 OAL

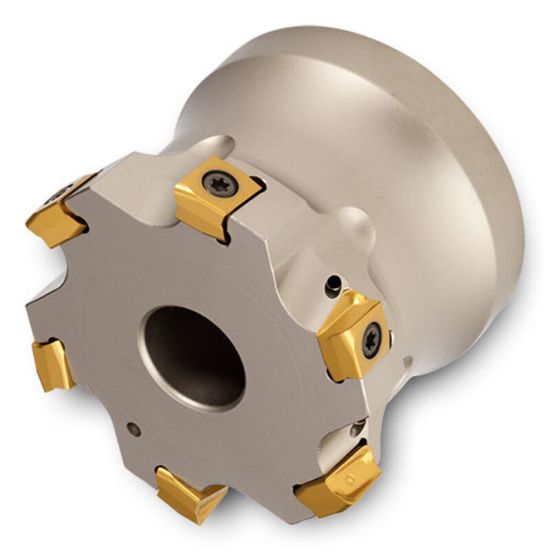

Picture of INGERSOLL SJ6F-02R02 Milling Cutter 90.0° 2.500 Shell Arbor 0.7500 6 Flute Coolant 0.42 Max DOC 1.570 OAL

INGERSOLL SJ6F-02R02 Milling Cutter 90.0° 2.500 Shell Arbor 0.7500 6 Flute Coolant 0.42 Max DOC 1.570 OAL

ANSI: SJ6F-02R02

ISO: SJ6F-02R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3026914
Delivery date: 3-5 days
$697.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Insert/Tool Tool
Shipping State Illinois
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Dimensional Specifications
Cut Dia Min 2.5000 63.50MM - 2-1/2
Depth Of Cut Max 0.4200
Cutter Dia 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 0.7500 19.05MM
Cut Dia Max 2.5000 63.50MM - 2-1/2
Tool Material Steel
Overall Len 1.5700 39.88MM
Insert Size Ic 31
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 6
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Rectagonal
Coolant Thru Yes
Insert Style DG
