  • INGERSOLL SJ6F-02R01 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 5 Flute Coolant 0.42 Max DOC 1.570 OAL

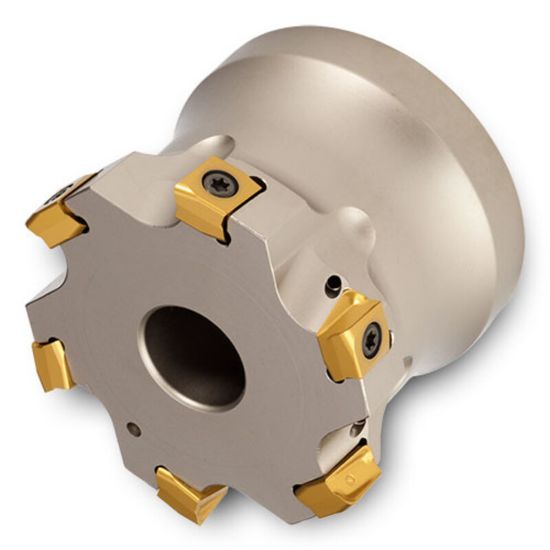

Picture of INGERSOLL SJ6F-02R01 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 5 Flute Coolant 0.42 Max DOC 1.570 OAL

INGERSOLL SJ6F-02R01 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 5 Flute Coolant 0.42 Max DOC 1.570 OAL

ANSI: SJ6F-02R01

ISO: SJ6F-02R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3026897
Delivery date: 3-5 days
$586.13

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Package Size 1
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Cut Dia Max 2.0000 50.80MM
Insert Size Ic 31
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 2.0000 50.80MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Flutes/Inserts 5
Depth Of Cut Max 0.4200
Cutter Dia 2.0000 50.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Rectagonal
Coolant Thru Yes
Insert Style DG
