  • INGERSOLL SJ5Y-02R02 Milling Cutter 90.0° 2.500 Shell Arbor 0.7500 9 Flute Coolant 0.31 Max DOC 1.570 OAL

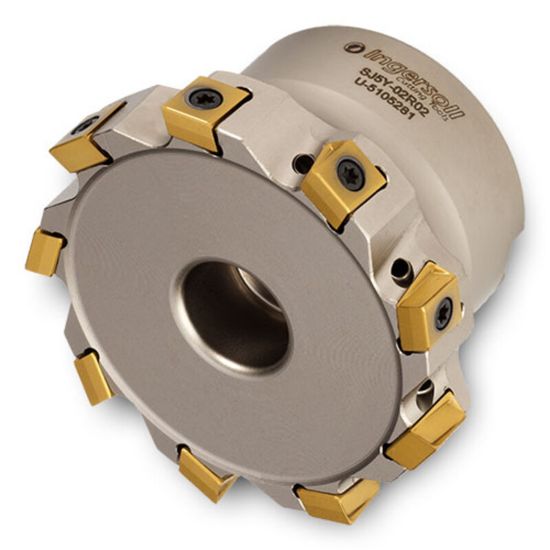

Picture of INGERSOLL SJ5Y-02R02 Milling Cutter 90.0° 2.500 Shell Arbor 0.7500 9 Flute Coolant 0.31 Max DOC 1.570 OAL

INGERSOLL SJ5Y-02R02 Milling Cutter 90.0° 2.500 Shell Arbor 0.7500 9 Flute Coolant 0.31 Max DOC 1.570 OAL

ANSI: SJ5Y-02R02

ISO: SJ5Y-02R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3029705
Delivery date: 3-5 days
$697.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Shipping State Illinois
Insert Type Negative
Made In USA No
Application Face Milling, Side Milling
Package Size 1
Dimensional Specifications
Cutter Dia 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 0.7500 19.05MM
Insert Size Ic 21
Tool Material Steel
Overall Len 1.5700 39.88MM
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.3100
Cut Dia Min 2.5000 63.50MM - 2-1/2
Flutes/Inserts 9
Cutting & Machining Properties
Coolant Thru Yes
Insert Style DG
Insert Shape/Cutter Pocket Shape Rectagonal
