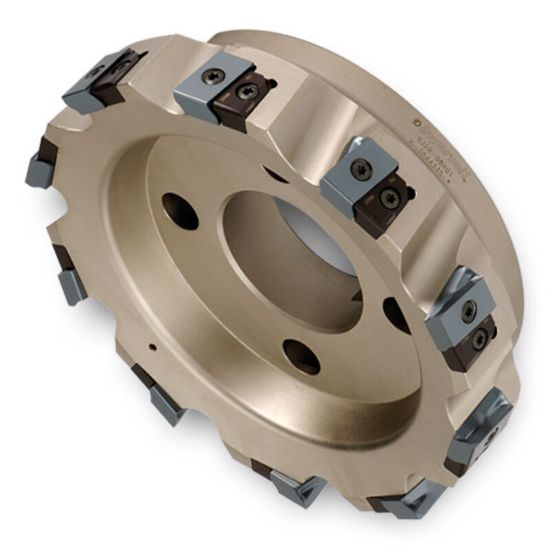

Picture of INGERSOLL SJ2R-08R01 Milling Cutter 90.0° 8.000 Shell Arbor 2.5000 9 Flute 0.96 Max DOC 2.375 OAL

INGERSOLL SJ2R-08R01 Milling Cutter 90.0° 8.000 Shell Arbor 2.5000 9 Flute 0.96 Max DOC 2.375 OAL

ANSI: SJ2R-08R01

ISO: SJ2R-08R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3027639
Delivery date: 3-5 days
$1,932.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Application Face Milling, Side Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 2.5000 63.50MM
Overall Len 2.3750 60.33MM
Flutes/Inserts 9
Insert Size Ic 32
Cutter Dia 8.0000 203.20MM
Cut Dia Max 8.0000 203.20MM
Depth Of Cut Max 0.9600
Cut Dia Min 8.0000 203.20MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Style DG
Insert Shape/Cutter Pocket Shape Rectagonal
Coolant Thru No
