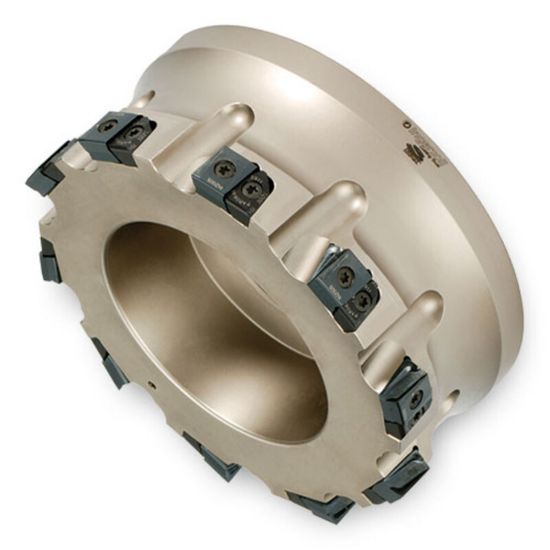

Picture of INGERSOLL SJ2N-08A01 Milling Cutter 90.0° 8.000 Shell Arbor 2.5000 10 Flute 0.68 Max DOC 2.375 OAL

INGERSOLL SJ2N-08A01 Milling Cutter 90.0° 8.000 Shell Arbor 2.5000 10 Flute 0.68 Max DOC 2.375 OAL

ANSI: SJ2N-08A01

ISO: SJ2N-08A01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3029208
Delivery date: 3-5 days
$1,894.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Shipping State Illinois
Package Size 1
Insert Application Finishing, Semi Finishing
Application Face Milling, Side Milling
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.3750 60.33MM
Insert Size Ic 43
Cut Dia Min 8.0000 203.20MM
Depth Of Cut Max 0.6800
Cutter Dia 8.0000 203.20MM
Cut Dia Max 8.0000 203.20MM
Flutes/Inserts 10
Tool Material Steel
Machine Side Connection Size 2.5000 63.50MM
Cutting & Machining Properties
Insert Style DP
Insert Shape/Cutter Pocket Shape Flat Blade
Coolant Thru No
