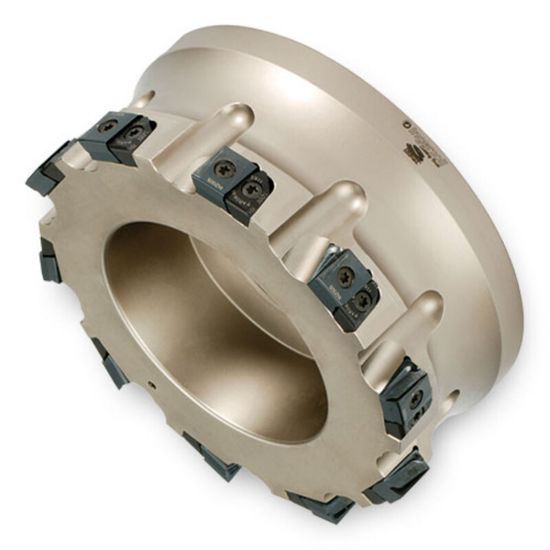

Picture of INGERSOLL SJ2N-06A01 Milling Cutter 90.0° 6.000 Shell Arbor 1.5000 8 Flute 0.68 Max DOC 2.375 OAL

INGERSOLL SJ2N-06A01 Milling Cutter 90.0° 6.000 Shell Arbor 1.5000 8 Flute 0.68 Max DOC 2.375 OAL

ANSI: SJ2N-06A01

ISO: SJ2N-06A01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3029203
Delivery date: 3-5 days
$1,577.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Insert Application Finishing, Semi Finishing
Package Size 1
Insert/Tool Tool
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 8
Depth Of Cut Max 0.6800
Cut Dia Min 6.0000 152.40MM
Overall Len 2.3750 60.33MM
Insert Size Ic 43
Cutter Dia 6.0000 152.40MM
Cut Dia Max 6.0000 152.40MM
Machine Side Connection Size 1.5000 38.10MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Flat Blade
Insert Style DP
