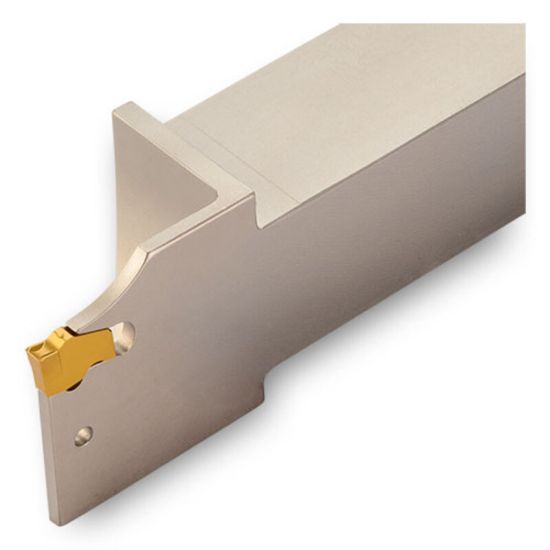

Picture of INGERSOLL SFEL19-1.6T22-45 Cut Off,Grooving Stick Tool Square 0.750 Steel

INGERSOLL SFEL19-1.6T22-45 Cut Off,Grooving Stick Tool Square 0.750 Steel

ANSI: SFEL19-1.6T22-45

ISO: SFEL19-1.6T22-45

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6213793
Delivery date: 3-5 days
$165.53

Features And Benefits

Holders for external parting and grooving

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Grooving, Parting
Insert Application General Purpose
Made In USA No
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Machine Side Connection Size 0.7500 19.05MM
Tool Width 0.7500
Overall Len 6.0000 152.40MM
Insert Size Ic 1.6
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Over Hang 1.1600
Max Dia Cut Off 1.7700
Cutting & Machining Properties
Insert Style SF
Insert Shape/Cutter Pocket Shape Other
Hand R/L Left
Inter/Extern External
