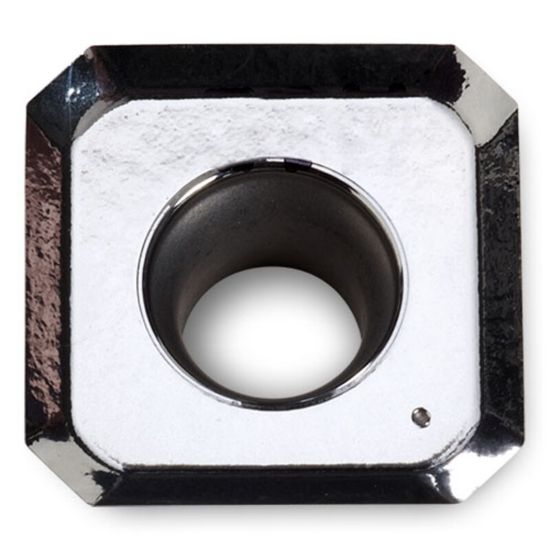

Picture of INGERSOLL SECT 09T3AFFN-P IN30M Milling Insert Square 0.010 PowerQuad Insert

INGERSOLL SECT 09T3AFFN-P IN30M Milling Insert Square 0.010 PowerQuad Insert

ANSI: SECT 09T3AFFN-P IN30M

ISO: SECT09T3AFFN-P IN30M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5880157
Delivery date: 3-5 days
$14.77

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

TOUGH GRADE FOR ALUMINUM,IRON,HIGH TEMP UNCOATED

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert/Tool Insert
Application Milling Insert
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Grade IN30M
Package Size 10
Dimensional Specifications
Insert Size Ic 9
Corner Radius 0.0100 0.25MM
Cut Rating Aluminum, Gray Iron, High Temp
Depth Of Cut Max 0.3800
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SE
Cutting Edge Mat Carbide
