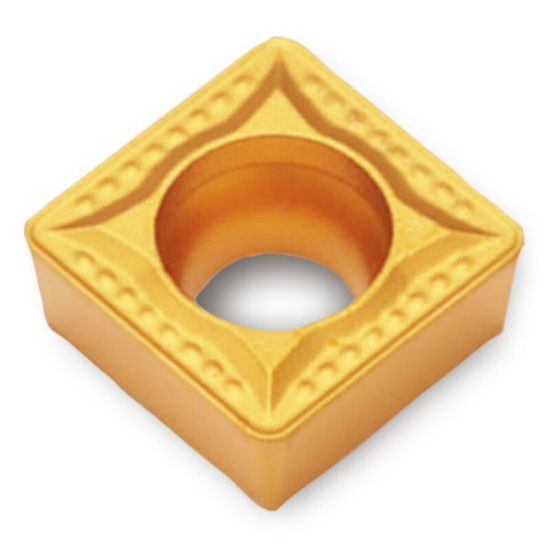

INGERSOLL SCMT32.52 MT TT8115 Turning Insert Square TiCN + Al2O3 + TiN 0.031 Corner Radius

ANSI: SCMT32.52 MT TT8115

ISO: SCMT09T308MT TT8115

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5518605
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Excellent wear resistance and heat-resistance CVD grade for high speed turning of steel in continuous cutting conditions

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Insert
Insert Type Positive
Coating TiCN + Al2O3 + TiN
Made In USA No
Shipping State Illinois
Application Turning Insert
Package Size 10
Grade TT8115
Dimensional Specifications
Corner Radius 0.0310 0.79MM
Insert Size Ic 09 "32"
Cut Rating <48HRC Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Cutting Edge Mat Carbide
Insert Style SC
