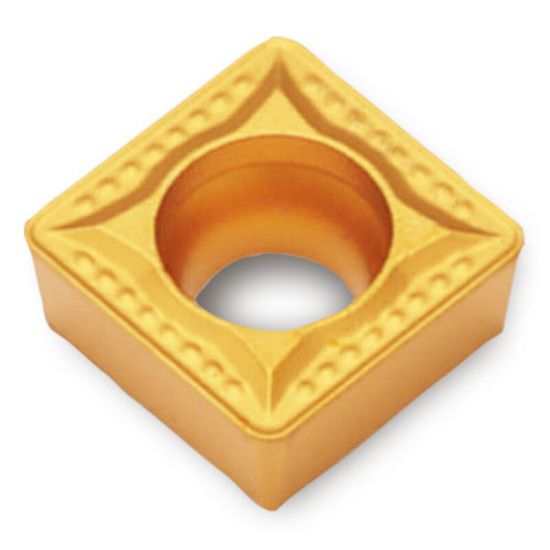

INGERSOLL SCMT32.51 MT TT7310 Turning Insert Square TiCN + Al2O3 0.016 Corner Radius

ANSI: SCMT32.51 MT TT7310

ISO: SCMT09T304MT TT7310

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5518397
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

For general machining of gray and ductile cast iron machining of cast iron machining of cast iron

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Insert Application Finishing
Insert Type Positive
Coating TiCN + Al2O3
Package Size 10
Grade TT7310
Insert/Tool Insert
Application Turning Insert
Made In USA No
Dimensional Specifications
Insert Size Ic 09 "32"
Cut Rating Ductile Iron, Gray Iron
Corner Radius 0.0160 0.41MM
Cutting & Machining Properties
Insert Style SC
Insert Shape/Cutter Pocket Shape Square
Cutting Edge Mat Carbide
