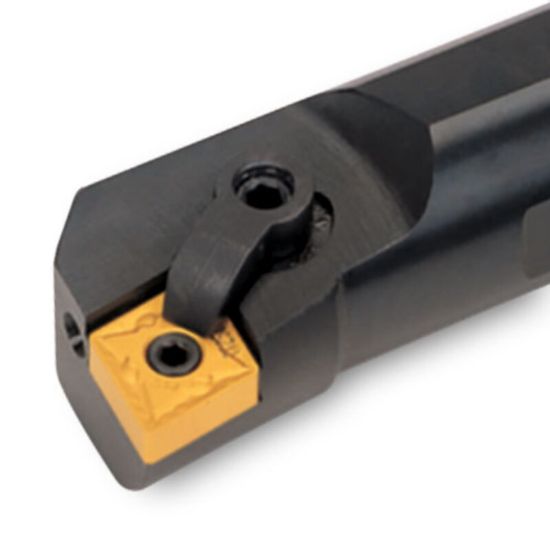

Picture of INGERSOLL S32V-MCLNR-4 Turning Boring Bar 80.0° Steel Boring Bar 2.000 Steel

INGERSOLL S32V-MCLNR-4 Turning Boring Bar 80.0° Steel Boring Bar 2.000 Steel

ANSI: S32V-MCLNR-4

ISO: S32V-MCLNR-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3672542
Delivery date: 3-5 days
$478.80

Features And Benefits

Multi-lock boring bar Accepts negative 80° rhombic inserts

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Int.Turning
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 2.0000 50.80MM - 2
Min Bore 2.5600
Insert Size Ic 12 "43"
Lead Angle 95°
Machine Side Connection Size 2.0000 50.80MM
Overall Len 16.0000 406.40MM
Tool Material Steel
Machine Side Connection Type Boring Bar
Cutting & Machining Properties
Inter/Extern Internal
Hand R/L Right
Insert Style CN
Insert Shape/Cutter Pocket Shape 80.0°
