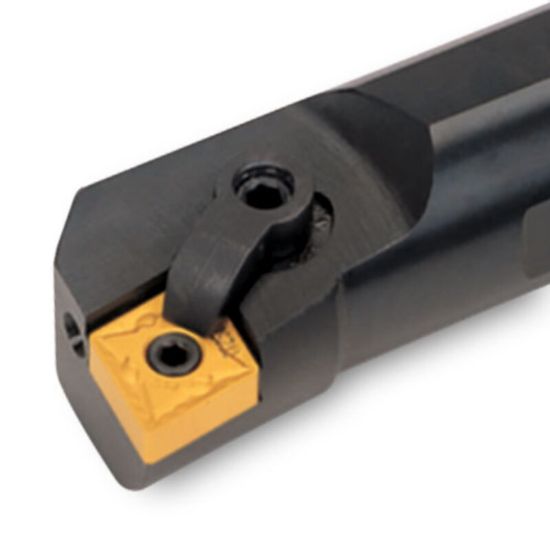

Picture of INGERSOLL S24U-MCLNL-4 Turning Boring Bar 80.0° Steel Boring Bar 1.500 Steel

INGERSOLL S24U-MCLNL-4 Turning Boring Bar 80.0° Steel Boring Bar 1.500 Steel

ANSI: S24U-MCLNL-4

ISO: S24U-MCLNL-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3670208
Delivery date: 3-5 days
$431.20

Features And Benefits

Multi-lock boring bar Accepts negative 80° rhombic inserts

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Application General Purpose
Insert Type Negative
Shipping State Illinois
Application Int.Turning
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 12 "43"
Overall Len 14.0000 355.60MM
Tool Material Steel
Machine Side Connection Type Boring Bar
Lead Angle 95°
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Size 1.5000 38.10MM
Min Bore 1.7800
Cutting & Machining Properties
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
Insert Style CN
