Picture of INGERSOLL S12S-MCLNR-4 Turning Boring Bar 80.0° Steel Boring Bar 0.750 Steel

INGERSOLL S12S-MCLNR-4 Turning Boring Bar 80.0° Steel Boring Bar 0.750 Steel

ANSI: S12S-MCLNR-4

ISO: S12S-MCLNR-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3672538
Delivery date: 3-5 days
$275.33

Features And Benefits

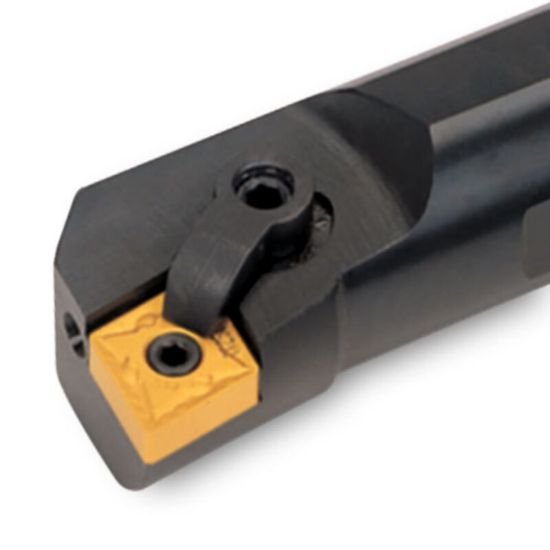

Multi-lock boring bar Accepts negative 80° rhombic inserts

Products specifications
Attribute name Attribute value
General Product Information
Application Int.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Lead Angle 95°
Overall Len 10.0000 254.00MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Type Boring Bar
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Min Bore 1.0000
Insert Size Ic 12 "43"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
Insert Style CN
Inter/Extern Internal
