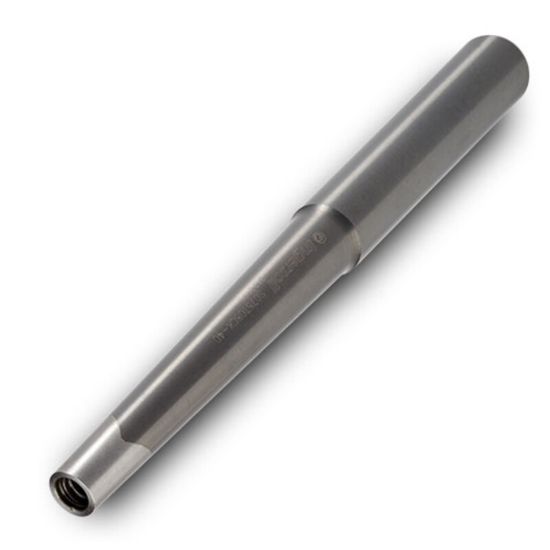

INGERSOLL S125T15CK-80 SH 1.2500 OAL 12.00 Replacable Head Acc. Straight Shank/Taper Neck Carbide Single End CHIPSURFER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING4508099
Delivery date: 3-5 days
$2,380.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Side Milling, Circle Segment, Groove Milling, Slot Milling, Copy Milling, Feed Milling, Face Milling, Profile Milling, Dovetail Milling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 12.0000 304.80MM
Machine Side Connection Size 1.2500 31.75MM
Length Type Standard
Cutter Style Screw On Shanks
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Medical Yes
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
