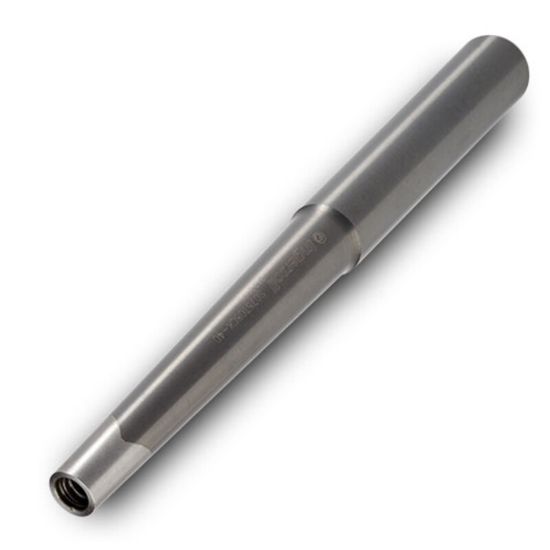

INGERSOLL S125T15CK-50 SH 1.2500 OAL 8.00 Replacable Head Acc. Straight Shank/Taper Neck Carbide Single End CHIPSURFER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING4508098
Delivery date: 3-5 days
$1,624.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Copy Milling, Feed Milling, Dovetail Milling, Circle Segment, Groove Milling, Profile Milling, Slot Milling
Package Size 1
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cutter Style Screw On Shanks
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Length Type Standard
Machine Side Connection Size 1.2500 31.75MM
Overall Len 8.0000 203.20MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Mold Yes
Automotive Yes
Job Shop Yes
Medical Yes
