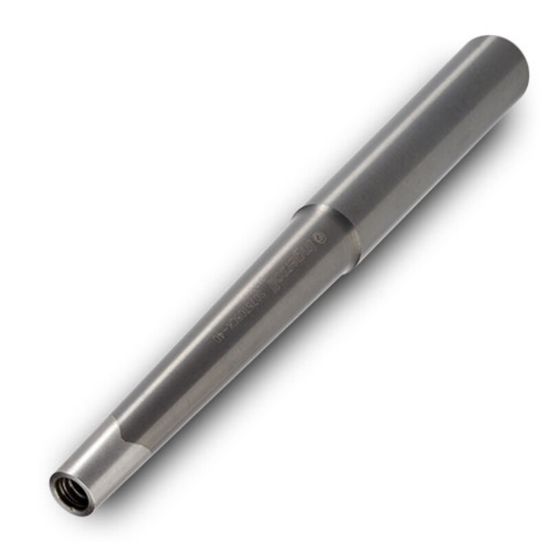

INGERSOLL S050T06CK-25 SH 0.50 OAL 5.50 Replacable Head Acc. Straight Shank/Taper Neck Carbide Single End CHIPSURFER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING4540004
Delivery date: 3-5 days
$553.47

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Dovetail Milling, Side Milling, Circle Segment, Face Milling, Groove Milling, Profile Milling, Slot Milling, Copy Milling, Feed Milling
Performance Rating High Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Overall Len 5.5000 139.70MM
Cutter Style Screw On Shanks
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
