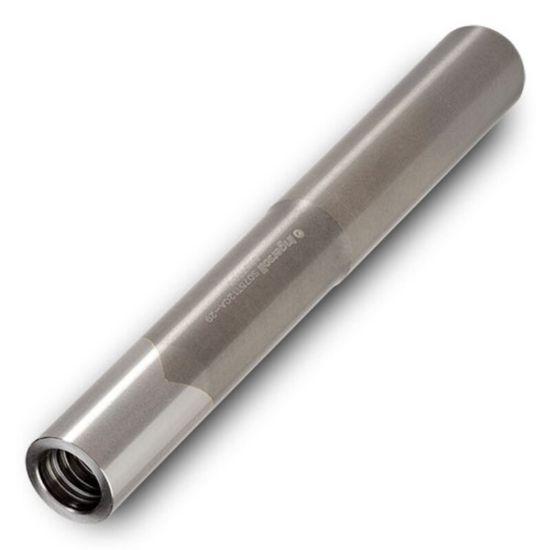

INGERSOLL S016T10CA040-03 SH 0.6299 OAL 3.5433Replacable Head Acc. Straight Neck/Cylicrical Shank Carbide Single End CHIPSURFER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2927940
Delivery date: 3-5 days
$487.20

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Dovetail Milling, Circle Segment, Side Milling, Slot Milling, Copy Milling, Feed Milling, Face Milling, Groove Milling, Profile Milling
Package Size 1
Made In USA No
Shipping State Illinois
Performance Rating High Performance
Dimensional Specifications
Inch/Metric Metric
Length Type Standard
Shank/Pilot Dia 0.6299 16.00MM
Cutter Style Screw On Shanks
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.6299 16.00MM
Overall Len 3.5433 90.00MM
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
