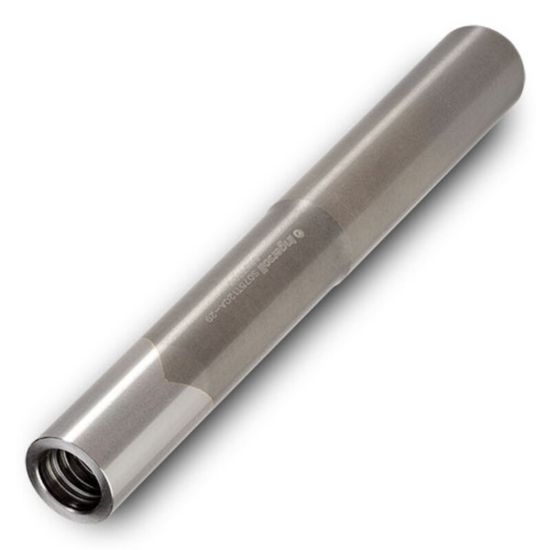

INGERSOLL S012T08CA080-01 SH 0.4724 OAL 5.1181Replacable Head Acc. Straight Neck/Cylicrical Shank Carbide Single End CHIPSURFER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2928086
Delivery date: 3-5 days
$459.20

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Feed Milling, Circle Segment, Side Milling, Dovetail Milling, Copy Milling, Face Milling, Groove Milling, Profile Milling, Slot Milling
Made In USA No
Shipping State Illinois
Performance Rating High Performance
Dimensional Specifications
Machine Side Connection Size 0.4724 12.00MM
Overall Len 5.1181 130.00MM
Inch/Metric Metric
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.4724 12.00MM
Cutter Style Screw On Shanks
Length Type Standard
Tool Material Carbide
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
