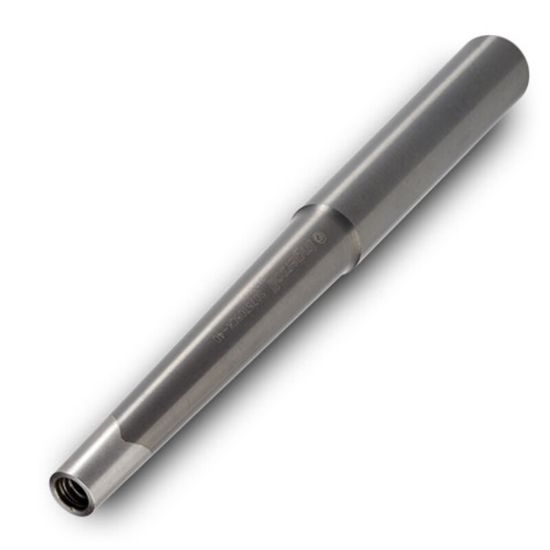

INGERSOLL S012T05CK080 SH 0.4724 OAL 5.1181Replacable Head Acc. Straight Shank/Taper Neck Carbide Single End CHIPSURFER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING4541456
Delivery date: 3-5 days
$491.87

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Dovetail Milling, Face Milling, Circle Segment, Groove Milling, Profile Milling, Slot Milling, Side Milling, Copy Milling, Feed Milling
Package Size 1
Performance Rating High Performance
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Size 0.4724 12.00MM
Length Type Standard
Overall Len 5.1181 130.00MM
Inch/Metric Metric
Single/Double End Single End
Cutter Style Screw On Shanks
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.4724 12.00MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Mold Yes
Agricultural YES
Energy Yes
Medical Yes
Automotive Yes
Job Shop Yes
