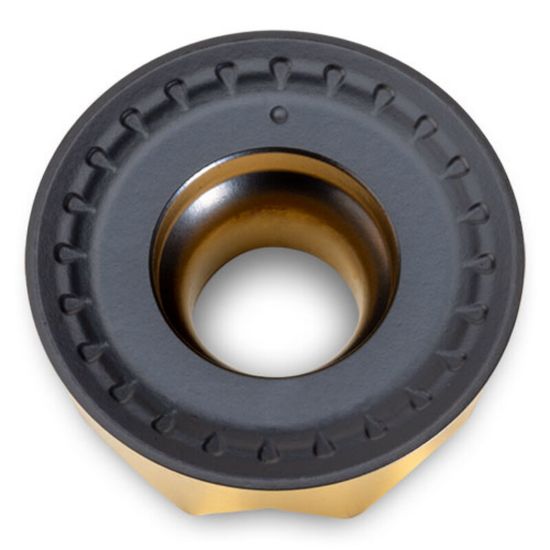

INGERSOLL RJLT1605MOTN IN1030 Milling Insert Round 0.315 TiCN FormMasterShear Insert

ANSI: RJLT1605MOTN IN1030

ISO: RJLT1605MOTN IN1030

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5615378
Delivery date: 3-5 days
$19.15

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

GENERAL PURPOSE GRADE FOR ALL METALS

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN
Package Size 10
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Insert
Application Milling Insert
Shipping State Illinois
Grade IN1030
Insert Type Positive
Dimensional Specifications
Cut Rating <48HRC Steel, Gray Iron, High Temp, Stainless Steel
Corner Radius 0.3150 8.00MM
Insert Size Ic 16
Cutting & Machining Properties
Insert Style RJ
Cutting Edge Mat Carbide
Insert Shape/Cutter Pocket Shape Round
