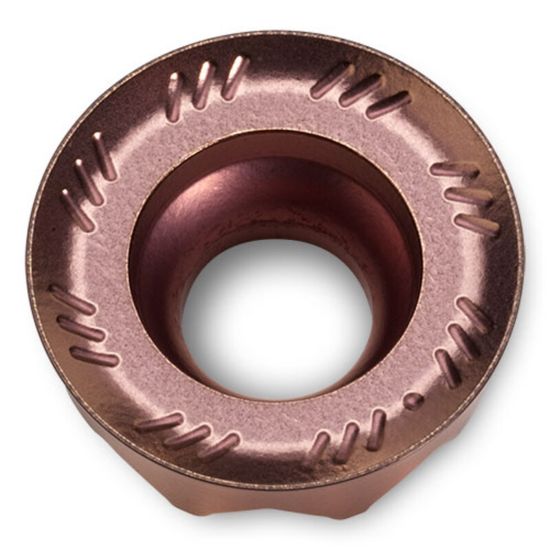

INGERSOLL RJLT1004MONMM IN1030 Milling Insert Round 0.197 TiCN FormMasterShear Insert

ANSI: RJLT1004MONMM IN1030

ISO: RJLT1004MONMM IN1030

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6106745
Delivery date: 3-5 days
$14.63

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

GENERAL PURPOSE GRADE FOR ALL METALS

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Insert Type Positive
Coating TiCN
Insert/Tool Insert
Application Milling Insert
Insert Application Semi Finishing, Roughing
Grade IN1030
Package Size 10
Dimensional Specifications
Insert Size Ic 10
Cut Rating <48HRC Steel, Gray Iron, High Temp, Stainless Steel
Corner Radius 0.1970 5.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Insert Style RJ
Cutting Edge Mat Carbide
