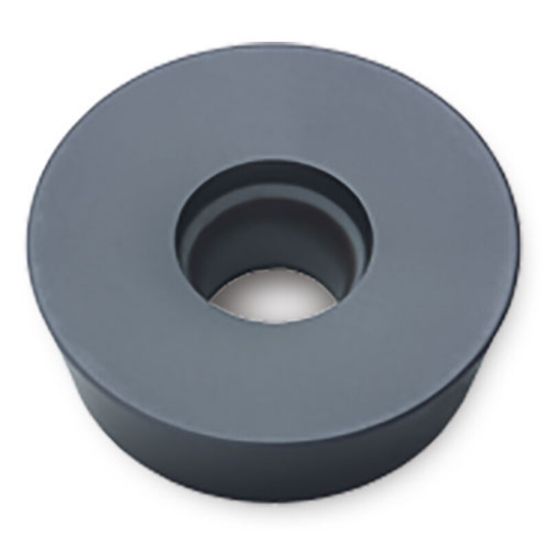

INGERSOLL RHKW2006M0TN IN4030 Milling Insert Round 0.394 TiAIN + AlCrO FormMaster+ Insert

ANSI: RHKW2006M0TN IN4030

ISO: RHKW2006M0TN IN4030

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5865982
Delivery date: 3-5 days
$20.49

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

TOUGH GRADE FOR GENERAL PURPOSE

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Insert
Application Milling Insert
Coating TiAIN + AlCrO
Insert Type Positive
Grade IN4030
Package Size 10
Dimensional Specifications
Insert Size Ic 20
Corner Radius 0.3940 10.01MM
Cut Rating <48HRC Steel, Gray Iron, High Temp, Stainless Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Cutting Edge Mat Carbide
Insert Style RH
