  • INGERSOLL RGER25.4-2T16 Cut Off,Face Grooving,Grooving,Groove Turning,Groove Threading Stick Tool Clamp Down Square 1.000

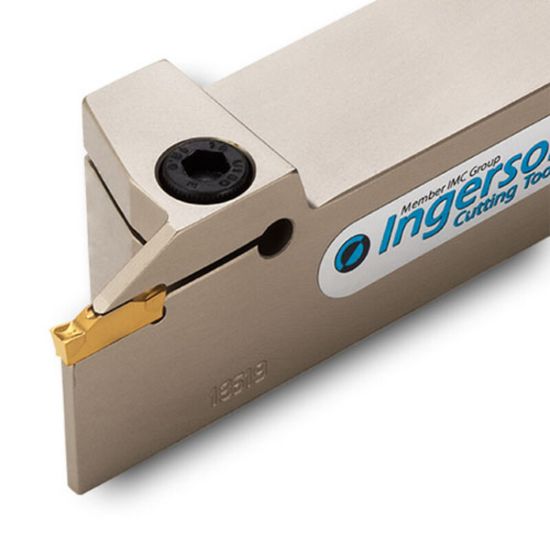

Picture of INGERSOLL RGER25.4-2T16 Cut Off,Face Grooving,Grooving,Groove Turning,Groove Threading Stick Tool Clamp Down Square 1.000

INGERSOLL RGER25.4-2T16 Cut Off,Face Grooving,Grooving,Groove Turning,Groove Threading Stick Tool Clamp Down Square 1.000

ANSI: RGER25.4-2T16

ISO: RGER25.4-2T16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6199105
Delivery date: 3-5 days
$156.87

Features And Benefits

Holders for external parting and grooving

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert/Tool Tool
Application Ext.Grooving, Parting
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Insert Size Ic 2
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Width 0.0710
Overall Len 6.0000 152.40MM
Depth Of Cut Max 0.6300
Flutes/Inserts 1
Cutting & Machining Properties
Insert Style RD,RS
Hand R/L Right
Insert Shape/Cutter Pocket Shape Other
Inter/Extern External
