  • INGERSOLL RGEL19-3T16 Cut Off,Face Grooving,Grooving,Groove Turning,Groove Threading Stick Tool Clamp Down Square 0.750

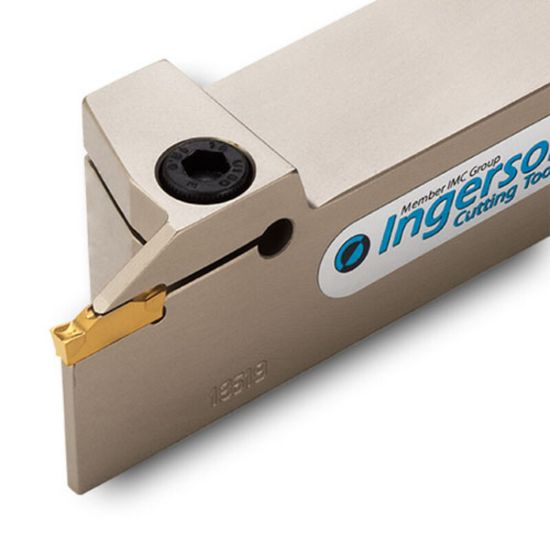

Picture of INGERSOLL RGEL19-3T16 Cut Off,Face Grooving,Grooving,Groove Turning,Groove Threading Stick Tool Clamp Down Square 0.750

INGERSOLL RGEL19-3T16 Cut Off,Face Grooving,Grooving,Groove Turning,Groove Threading Stick Tool Clamp Down Square 0.750

ANSI: RGEL19-3T16

ISO: RGEL19-3T16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6199098
Delivery date: 3-5 days
$149.07

Features And Benefits

Holders for external parting and grooving

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Package Size 1
Made In USA No
Insert Application General Purpose
Shipping State Illinois
Insert/Tool Tool
Application Ext.Grooving, Parting
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 3
Depth Of Cut Max 0.6300
Flutes/Inserts 1
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7500 19.05MM
Overall Len 5.0000 127.00MM
Tool Width 0.0940
Cutting & Machining Properties
Insert Style RD,RS
Inter/Extern External
Hand R/L Left
Insert Shape/Cutter Pocket Shape Other
