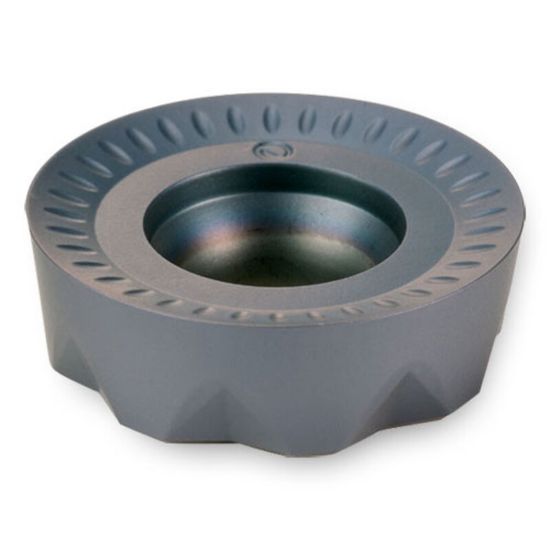

INGERSOLL RCLT190600N-HR IN2030 Milling Insert Round 0.375 TiAlN FormMaster Wave Insert

ANSI: RCLT190600N-HR IN2030

ISO: RCLT190600N-HR IN2030

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5821042
Delivery date: 3-5 days
$17.64

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

TIALN COATED INSERT FOR STEEL,STAINLESS AND HIGH TEMP GOOD TOUGHNESS

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Package Size 10
Insert Type Positive
Coating TiAlN
Grade IN2030
Made In USA No
Shipping State Illinois
Insert/Tool Insert
Application Milling Insert
Dimensional Specifications
Corner Radius 0.3750 9.53MM
Insert Size Ic 19
Cut Rating <40HRC Steel, High Temp, Stainless Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Cutting Edge Mat Carbide
Insert Style RC
