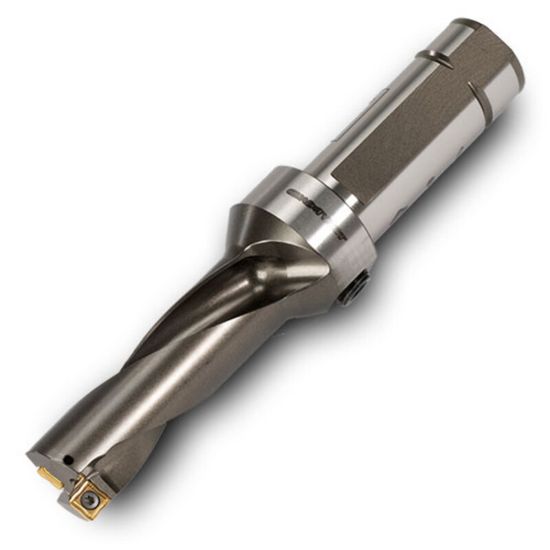

INGERSOLL QR0413206N6R02 1.625 (41.28 mm) Square Insert Indexable Inch Drill s|L:D Ratio - 5:1|For Lathe Use: Brass Coolant Fitting Should Be Ordered Separately|

ISO: QR0413206N6R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6108610
Delivery date: 3-5 days
$933.33

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Multi Insert Drilling, Drilling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 1.6250 41.28MM - 1-5/8
Machine Side Connection Type Boring Bar,Weldon
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Dia Deep 5.0XD
Flute Length 8.1300 206.50MM
Cutter Dia 1.6250 41.28MM - 1-5/8
Flutes/Inserts 2
Overall Len 12.6800 322.07MM
Machine Side Connection Size 1.2500 31.75MM
Tool Material Carbide
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
