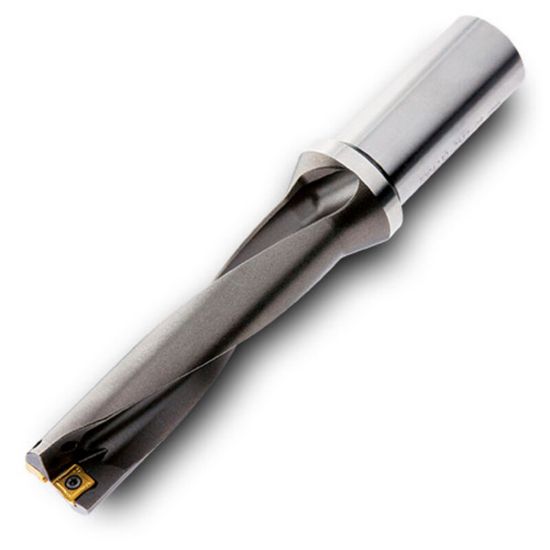

INGERSOLL QR0400080JGR00 1.575 (40.00 mm) Square Insert Indexable Drill s - Metric|L:D Ratio - 2:1|For Lathe Use: Brass Coolant Fitting Should Be Ordered Separately|

ISO: QR0400080JGR00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6102611
Delivery date: 3-5 days
$674.80

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Drilling, Multi Insert Drilling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Boring Bar,Weldon
Cutter Dia 1.5748 40.00MM
Cut Dia Min 1.5748 40.00MM
Dia Deep 2.0XD
Overall Len 6.6142 168.00MM
Flutes/Inserts 2
Flute Length 3.1500 80.01MM
Tool Material Carbide
Machine Side Connection Size 1.2598 32.00MM
Shank/Pilot Dia 1.2598 32.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
