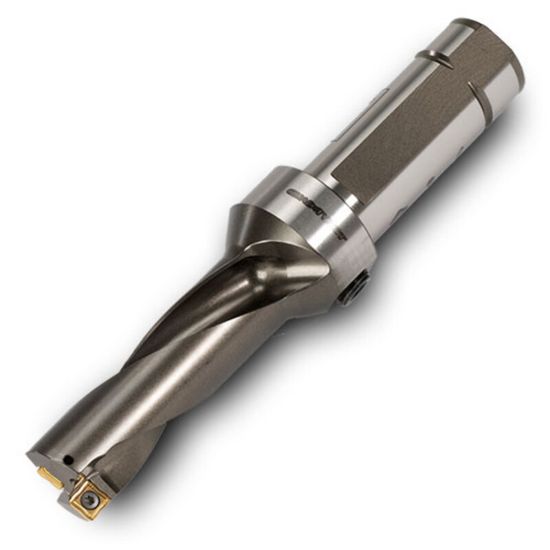

INGERSOLL QR0381152N6R02 1.500 (38.10 mm) Square Insert Indexable Drill s Inch|L:D Ratio - 4:1|For Lathe Use: Brass Coolant Fitting Should Be Ordered Separately|

ISO: QR0381152N6R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6108593
Delivery date: 3-5 days
$814.80

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Multi Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 10.5900 268.99MM
Machine Side Connection Type Boring Bar,Weldon
Machine Side Connection Size 1.2500 31.75MM
Flutes/Inserts 2
Flute Length 6.0000 152.40MM
Cut Dia Min 1.5000 38.10MM - 1-1/2
Dia Deep 4.0XD
Cutter Dia 1.5000 38.10MM - 1-1/2
Tool Material Carbide
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
