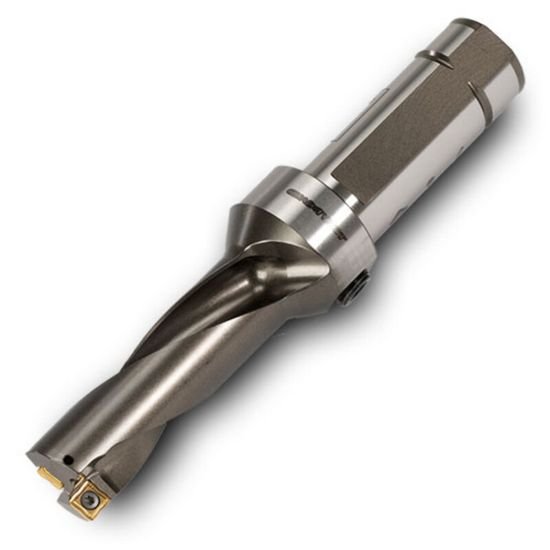

Picture of Ingersoll QR0341171N6R02 1.343 (34.11 mm) Square Insert Indexable Inch Drills

Ingersoll QR0341171N6R02 1.343 (34.11 mm) Square Insert Indexable Inch Drills

Part Number: ING6108574 ISO: QR0341171N6R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1107568
Vendor: Sussex Tool and Supply
$910.00
INGERSOLL 6108574 1.343 (34.11 mm) Square Insert Indexable Inch Drills|L:D Ratio - 5:1|For Lathe Use: Brass Coolant Fitting Should Be Ordered Separately| Carbide
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.2500 31.75MM
Overall Length 11.2200 284.99MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 1.3438 34.13MM - 1-11/32
Type Of Tool Drill
Flute Length 6.7200 170.69MM
Cut Dia Min 1.3438 34.13MM - 1-11/32
Dia Deep 5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
