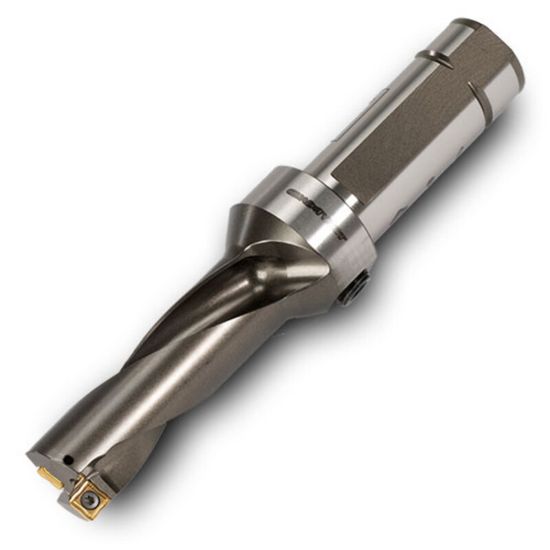

INGERSOLL QR0341136N6R02 1.343 (34.11 mm) Square Insert Indexable Drill s Inch|L:D Ratio - 4:1|For Lathe Use: Brass Coolant Fitting Should Be Ordered Separately|

ISO: QR0341136N6R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6108573
Delivery date: 3-5 days
$783.07

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Multi Insert Drilling, Drilling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 2
Flute Length 5.3700 136.40MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 9.8800 250.95MM
Machine Side Connection Type Boring Bar,Weldon
Machine Side Connection Size 1.2500 31.75MM
Cutter Dia 1.3438 34.13MM - 1-11/32
Cut Dia Min 1.3438 34.13MM - 1-11/32
Dia Deep 4.0XD
Tool Material Carbide
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
