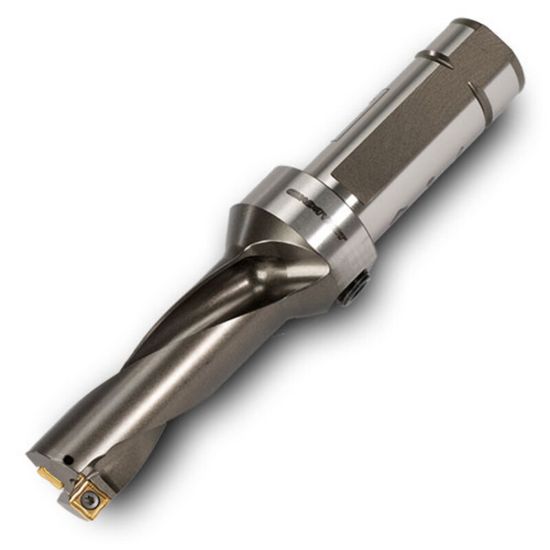

INGERSOLL QR0325065N6R02 1.281 (32.54 mm) Square Insert Indexable Drill s - Inch|L:D Ratio - 2:1|For Lathe Use: Brass Coolant Fitting Should Be Ordered Separately|

ISO: QR0325065N6R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6108563
Delivery date: 3-5 days
$611.33

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Multi Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cutter Dia 1.2813 32.54MM - 1-9/32
Machine Side Connection Type Boring Bar,Weldon
Dia Deep 2.0XD
Flutes/Inserts 2
Tool Material Carbide
Overall Len 7.1300 181.10MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flute Length 2.5600 65.02MM
Machine Side Connection Size 1.2500 31.75MM
Cut Dia Min 1.2810 32.54MM - 1-9/32
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
