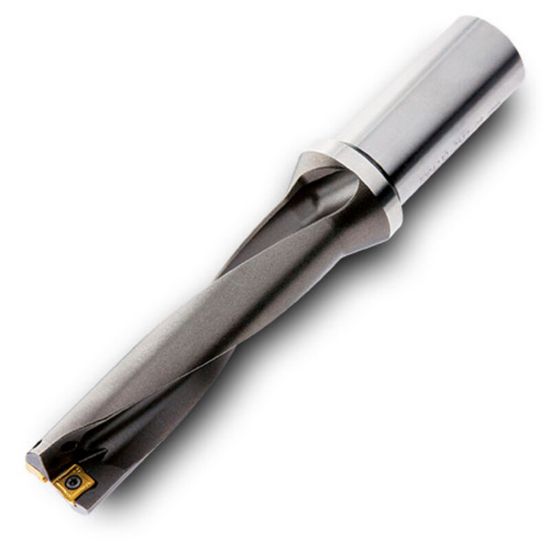

INGERSOLL QR0310062JGR00 1.221 (31.00 mm) Square Insert Indexable Drill s - Metric|L:D Ratio - 2:1|For Lathe Use: Brass Coolant Fitting Should Be Ordered Separately|

ISO: QR0310062JGR00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3204500
Delivery date: 3-5 days
$611.33

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Multi Insert Drilling, Drilling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 1.2205 31.00MM
Cutter Dia 1.2205 31.00MM
Overall Len 5.7087 145.00MM
Flutes/Inserts 2
Dia Deep 2.0XD
Tool Material Carbide
Shank/Pilot Dia 1.2598 32.00MM
Machine Side Connection Size 1.2598 32.00MM
Machine Side Connection Type Boring Bar,Weldon
Flute Length 2.4410 62.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
