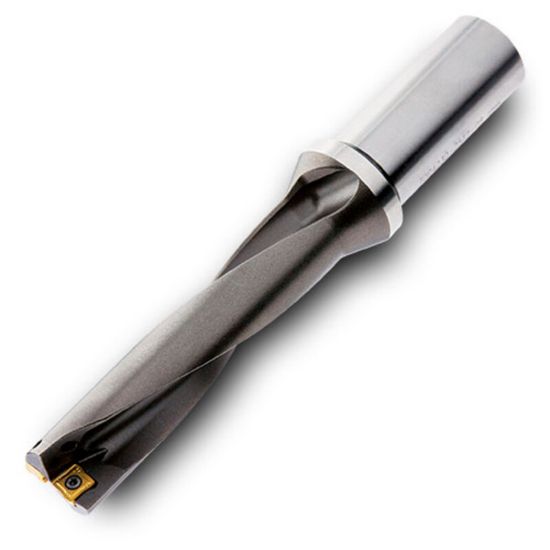

INGERSOLL QR0280084JFR00 1.102 (28.00 mm) Square Insert Indexable Drill s Metric|L:D Ratio - 3:1|For Lathe Application: Brass Coolant Fitting Should Be Ordered Separately|

ISO: QR0280084JFR00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6102623
Delivery date: 3-5 days
$595.47

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Multi Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cut Dia Min 1.1024 28.00MM
Machine Side Connection Type Boring Bar,Weldon
Dia Deep 3.0XD
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9843 25.00MM
Flutes/Inserts 2
Cutter Dia 1.1024 28.00MM
Overall Len 6.4173 163.00MM
Flute Length 3.3070 84.00MM
Tool Material Carbide
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
